Armoured duplex patch cables
Steel tube armoured 2 core patch leads, OM3 or OS2, with a tough LSZH UV stable jacket for indoor and outdoor routes.
Steel tube armouredLSZH UV stableOM3 or OS2
Fibre optic
Specifications
| Fibre count | 2 core (simplex available) |
|---|---|
| Fibre grades | OM3 or OS2 |
| Outer diameter | 3 mm |
| Armour | 1.8 mm flexible stainless steel tube with Kevlar yarn |
| Jacket | LSZH, UV stable, black |
| Tensile load | 300 N long term, 700 N short term |
| Crush resistance | 500 N/100 mm long term, 1000 N/100 mm short term |
| Bend radius | 20 × D dynamic, 10 × D static (D = cable diameter) |
| Operating temperature | −20 °C to +70 °C |
| Connectors | LC, ST, SC, FC, LC Uniboot |
| Insertion loss | ≤ 0.25 dB |
| Return loss | ≥ 55 dB SM UPC, ≥ 65 dB SM APC, ≥ 30 dB MM UPC |
| Standards | IEC 60794-2-51 cable; tested to IEC 60794-1-21 and IEC 60794-1-22 |
Key benefits
- High impact and crush resistance for high-traffic areas.
- Rodent resistant steel tube armour.
- Low smoke zero halogen, UV stable jacket for indoor and outdoor use.
- Slim 3 mm cable that still routes neatly.
Photos

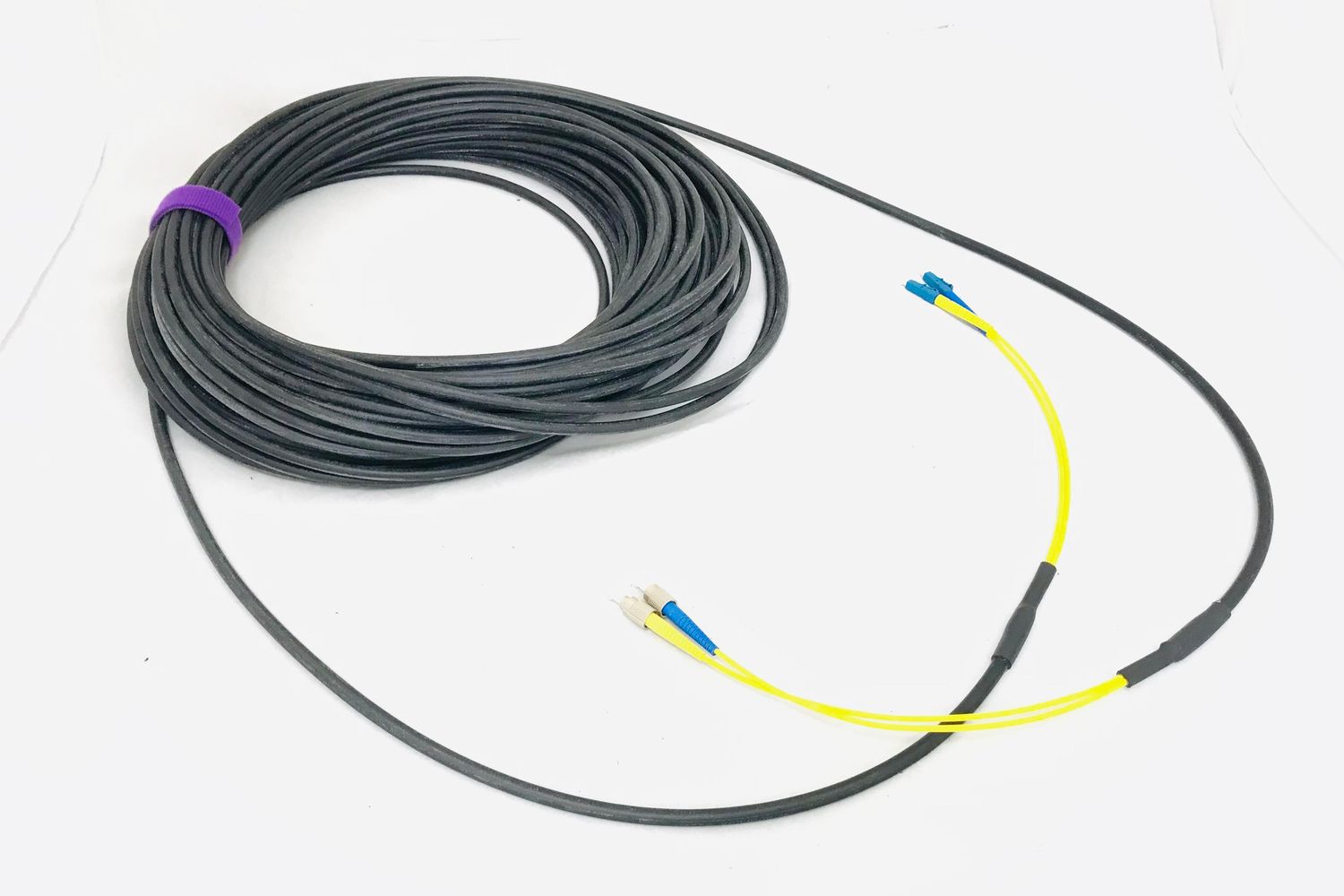

Armoured fibre optic patch leads made from a robust 3 mm cable. Two fibres sit inside a flexible stainless steel tube, protected by multiple strands of Kevlar yarn and encased in a black LSZH UV stable jacket.
The armour gives high impact and crush resistance, and protects against rodent damage, so the leads suit permanent outdoor runs and temporary indoor use in busy areas.
Options and customisation
Choose OM3 or OS2, your connectors and the length. Simplex versions are also available.
Typical applications
100 Mb, 1 Gb and 10 Gb/s LAN, data centres, internal data and telecoms, broadcast and media, video, data and voice, CCTV, FTTD and home fibre networking.
Testing and documentation
Every lead is individually factory tested before despatch. Full mechanical and connector performance figures are in the datasheet.
Ordering
We build to order for businesses and individual customers, from a single assembly upwards. Trade partners can have assemblies labelled to their own scheme.
Typical applications
Data centresTelecommunicationsBroadcast and mediaCommercial installations
Need it for something else? Tell us what you need, we can probably make it.
Related products

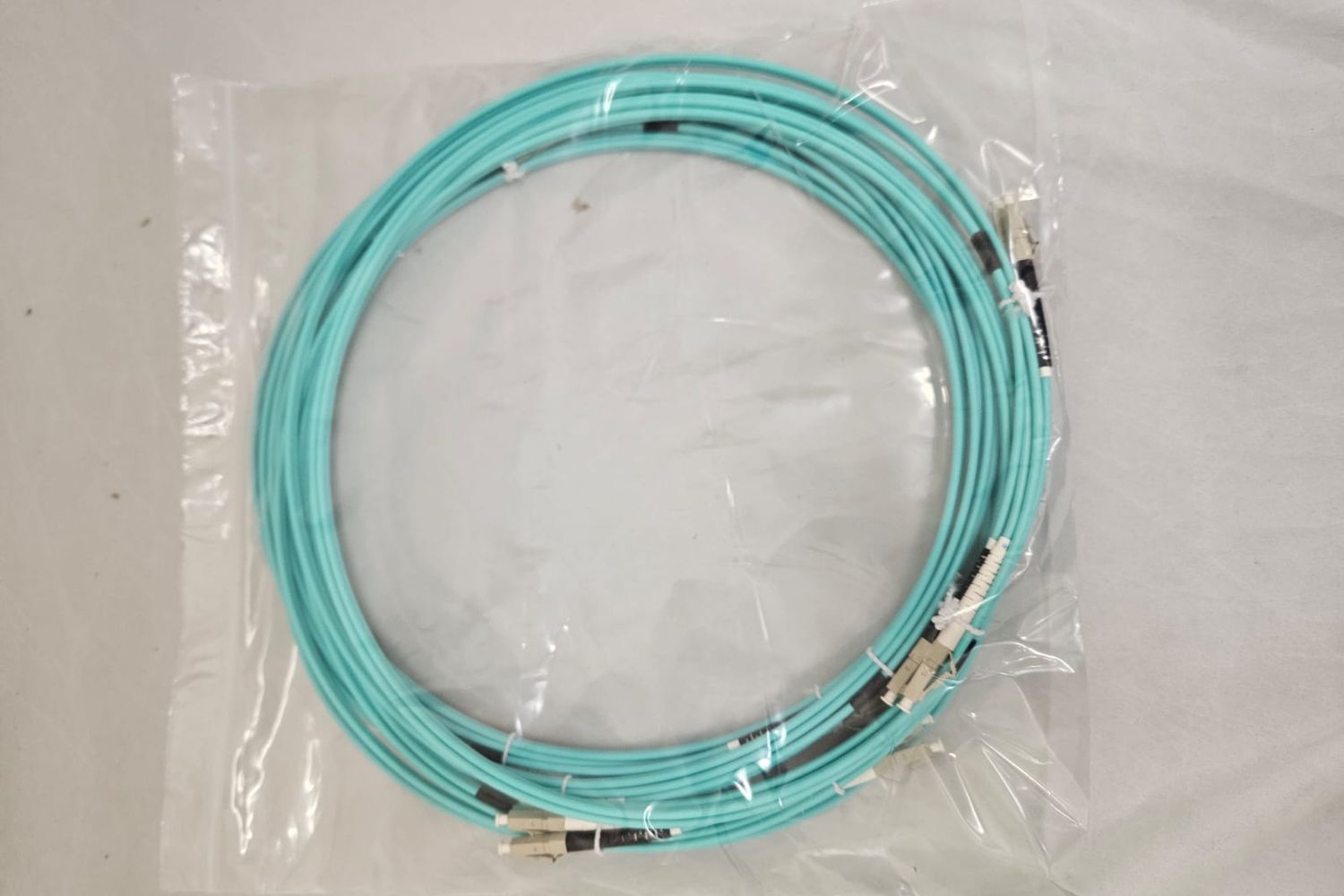

Zip and ruggedised patch cables
