Product catalogue
Every assembly is built to order in Britain, individually tested and finished to the specification you supply. Browse the range, then send us your requirement.
Cable assemblies
All cable assemblies

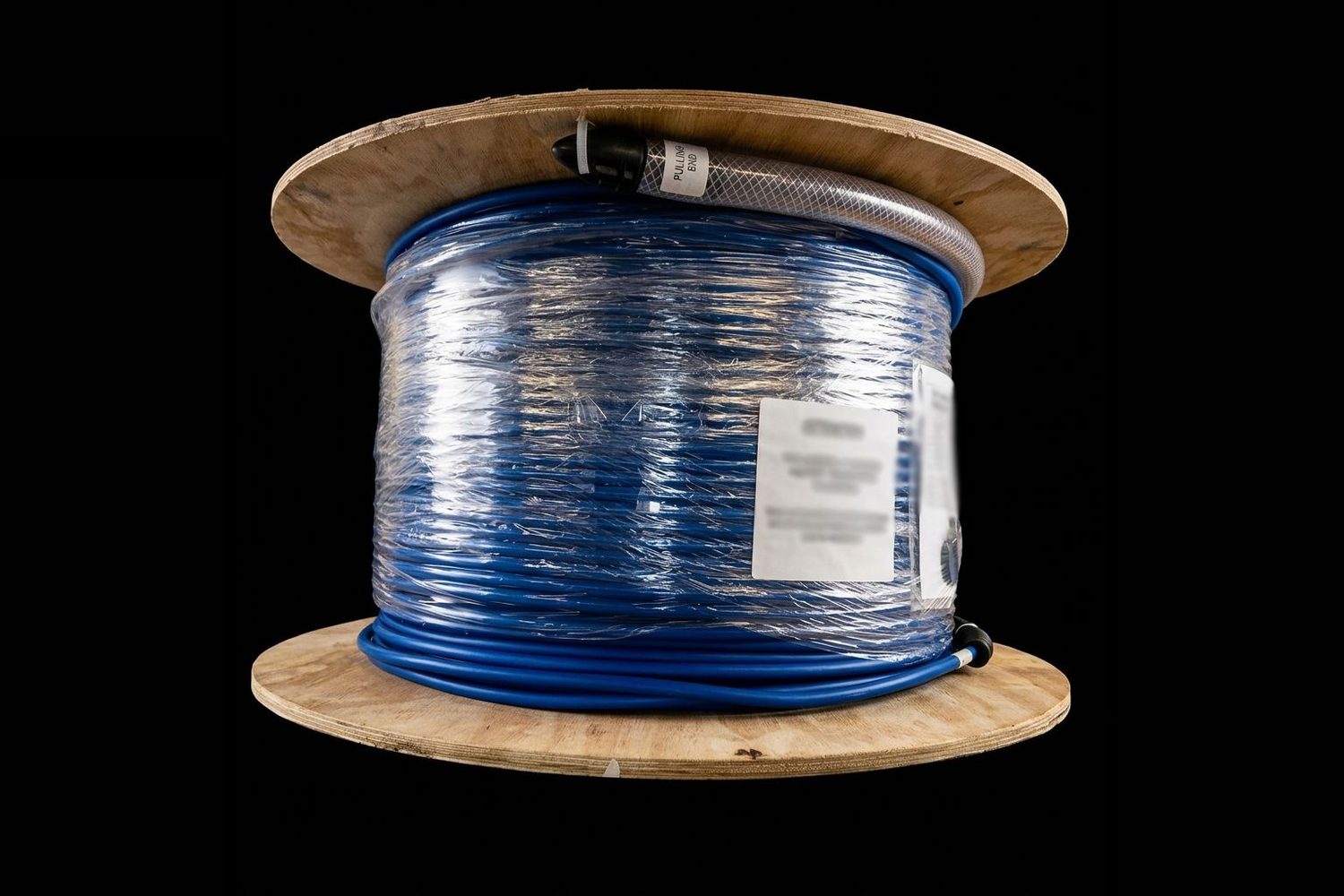

Pre-terminated multicore fibre assemblies
Multicore fibre assemblies built to your exact cable schedule, terminated, tested and protected in the factory.
4 to 48 coresCustom breakout lengthsFactory tested

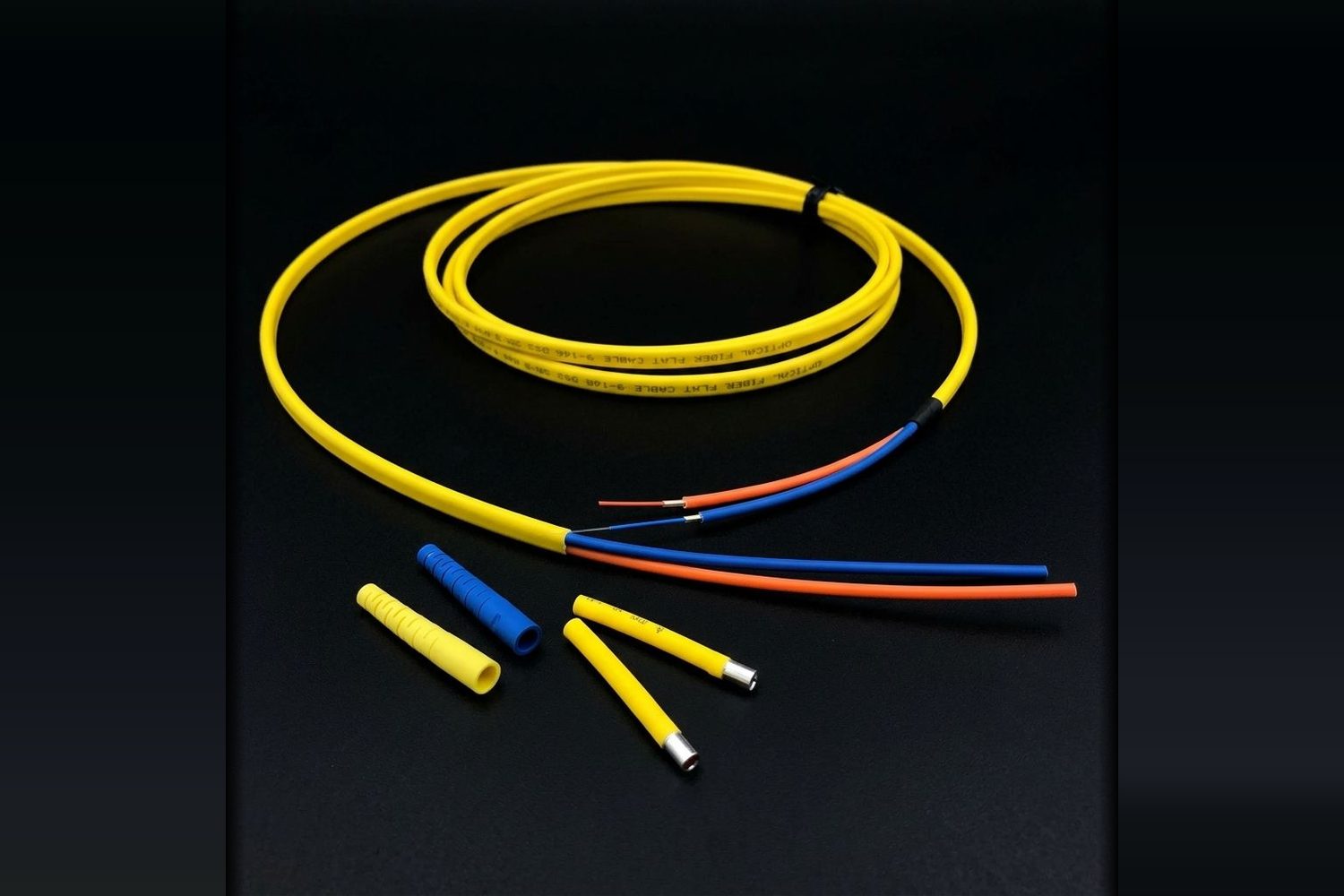

Fibre patch cables
Made-to-order patch leads for cabinet, frame and equipment connection, built to the exact length you specify.
Simplex, duplex, ruggedisedCustom coloursAPC solutions

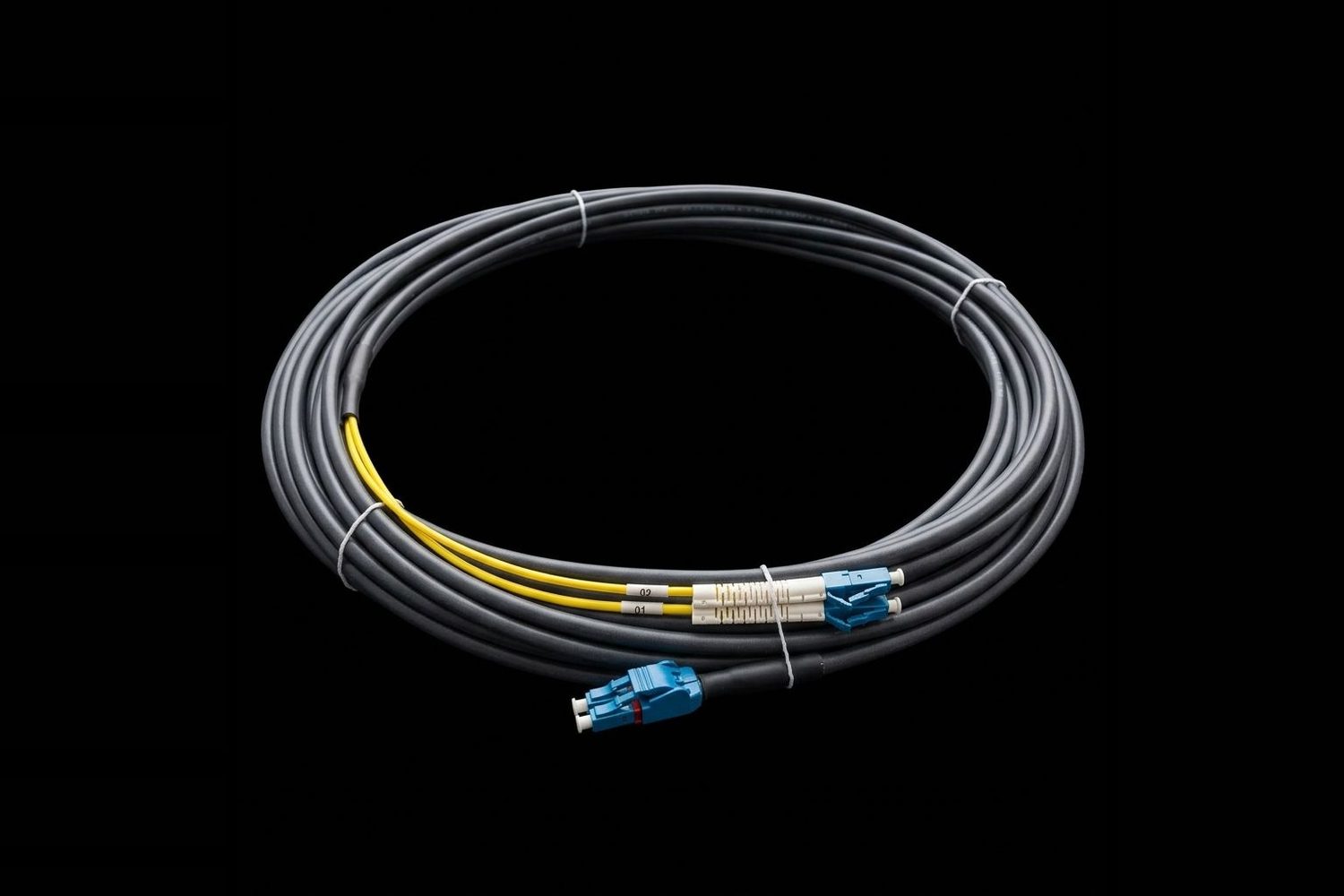

Micro armoured patch cables
A steel-armoured patch lead for routes where standard patch cords risk crushing, pinching or rodent damage.
Crush resistantRodent resistantSlim profile

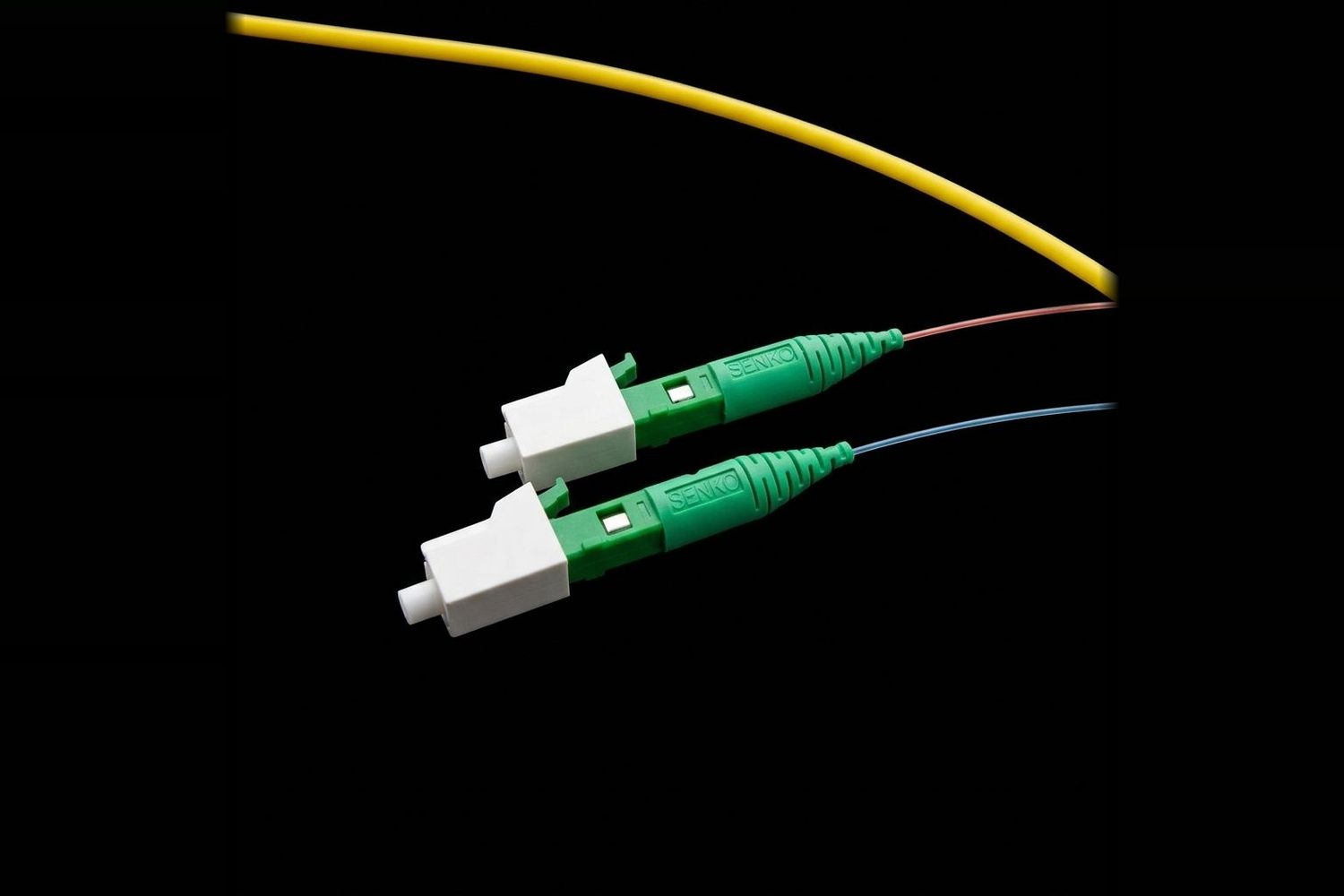

Air blown fibre (ABF) cables and assemblies
Lightweight blown fibre cables and assemblies for microduct systems, supplied factory terminated and tested to your requirements.
Microduct installationLightweight and compactFactory terminated options

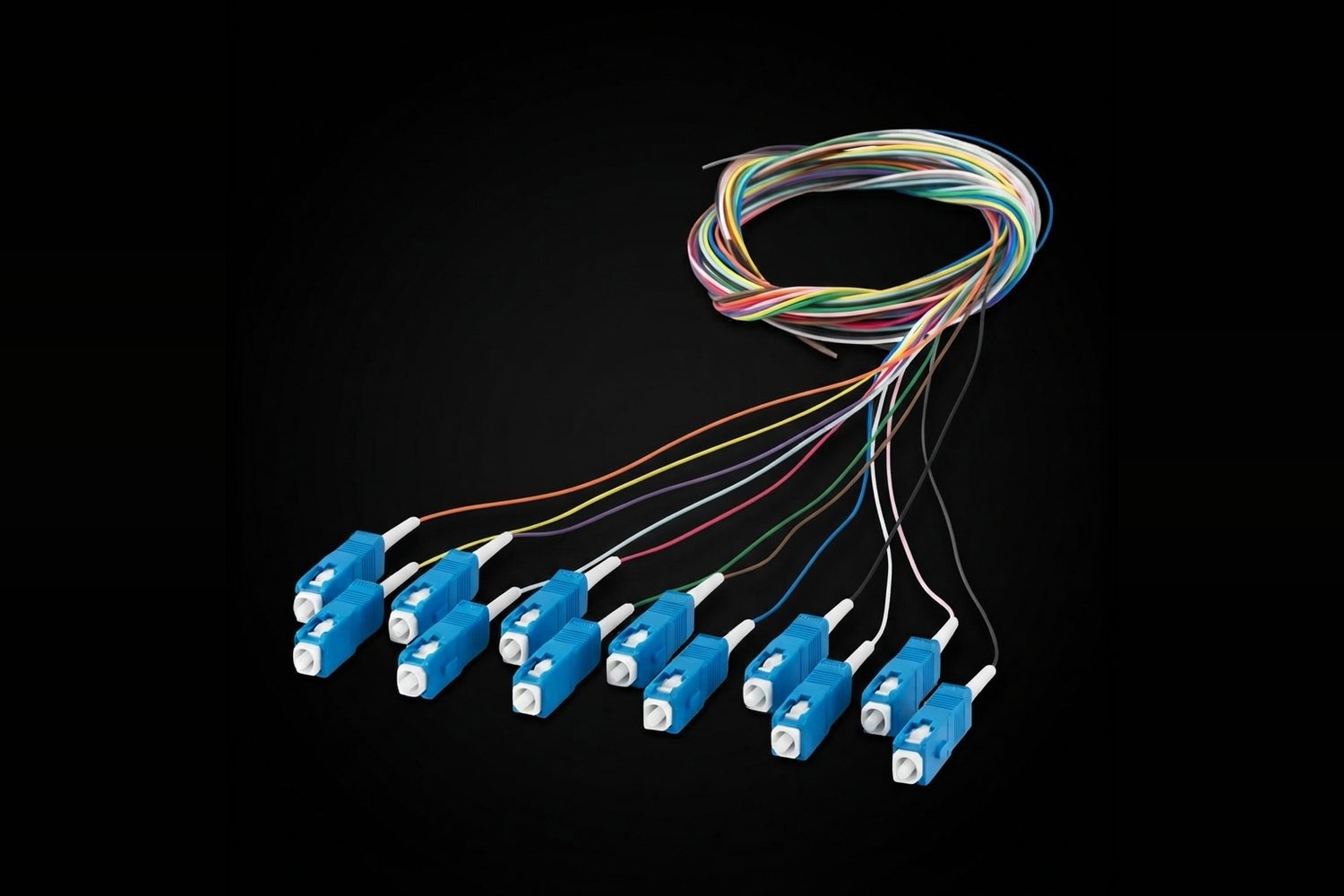

Fibre optic pigtails
Factory terminated pigtails for splice trays and patch panel loading, supplied singly or in colour-coded bundles.
900µm bufferedSplice readyBulk packs

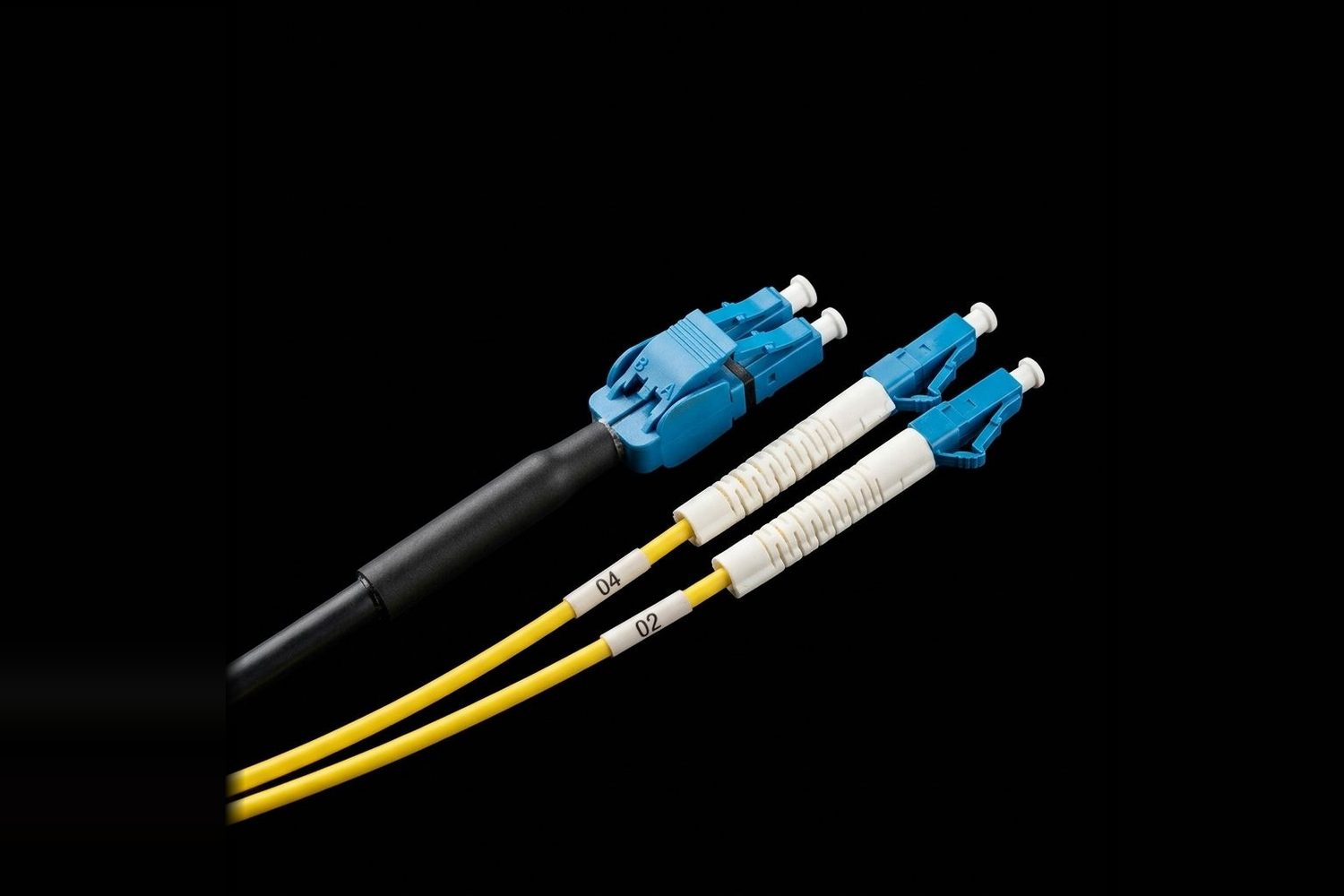

Special fibre connectors and assemblies
Fibre assemblies built with special connector types, such as LC Uniboot and angled LC, where a standard connector will not fit the job.
LC UnibootAngled LCBuilt to order

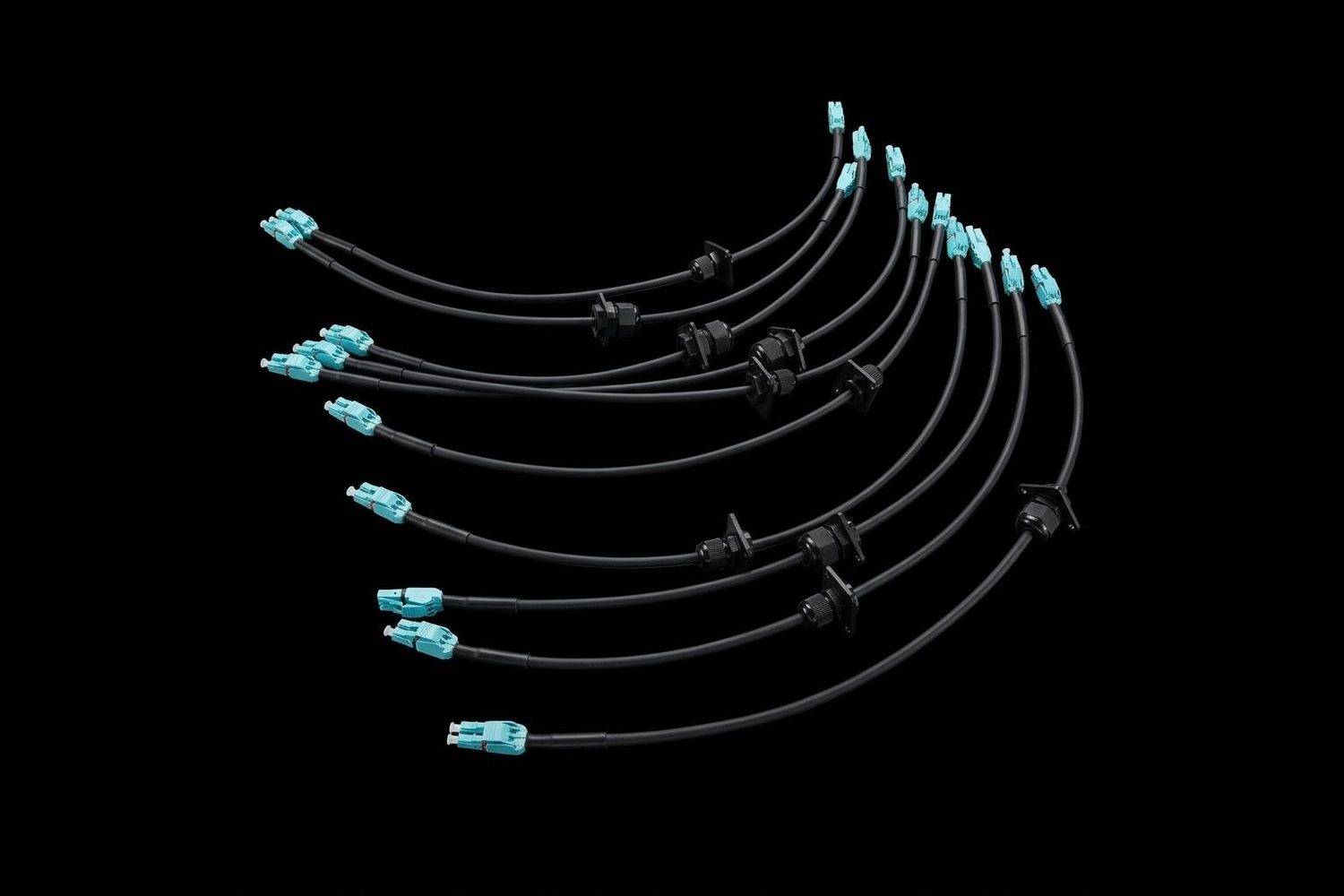

Mil-Tac cable assemblies
Ruggedised deployable fibre built to survive repeated deployment and recovery in harsh conditions.
Non-metallicIP68 optionsRepeated deployment

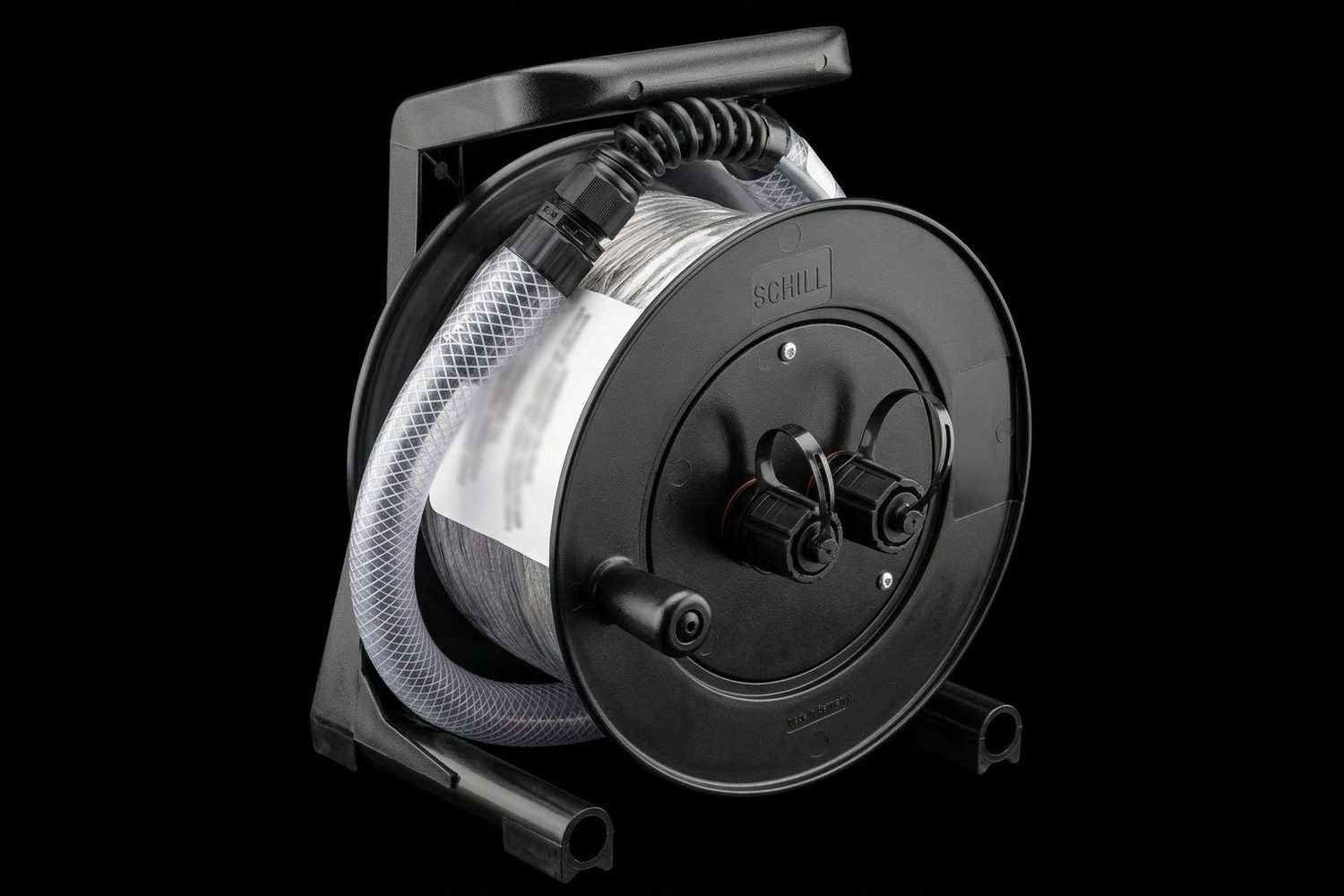

Deployable fibre assemblies
Ruggedised fibre assemblies for temporary, semi-permanent and permanent deployments, factory terminated, tested and ready to connect in the field.
Rapid field deploymentRuggedised constructionFactory terminated and tested
Mini Mil Tac™ deployable fibre
An extremely rugged, lightweight non-metallic deployable fibre cable developed by QAD Networks.
3.4 mm outer diameterNon-metallic1 m to 1 km
IP Pro Bulkhead Fibre Chassis Connector
A rack-mount bulkhead panel fitted with IP Pro fibre chassis connectors, each with a tethered dust cap.
Rack-mount panelIP Pro connectorsTethered dust caps
CAT Network Cable Loom Harness
A professionally assembled harness of 8, 12 or 24 individual CAT cables in a single organised loom for high-density network installations.
8, 12 or 24 cablesSingle organised loomIndividually tested
Copper patch cables
Made-to-order patch leads in every common category, individually tested with the Fluke result available.
Cat5e to Cat7Fluke testedStraight or angled connectors

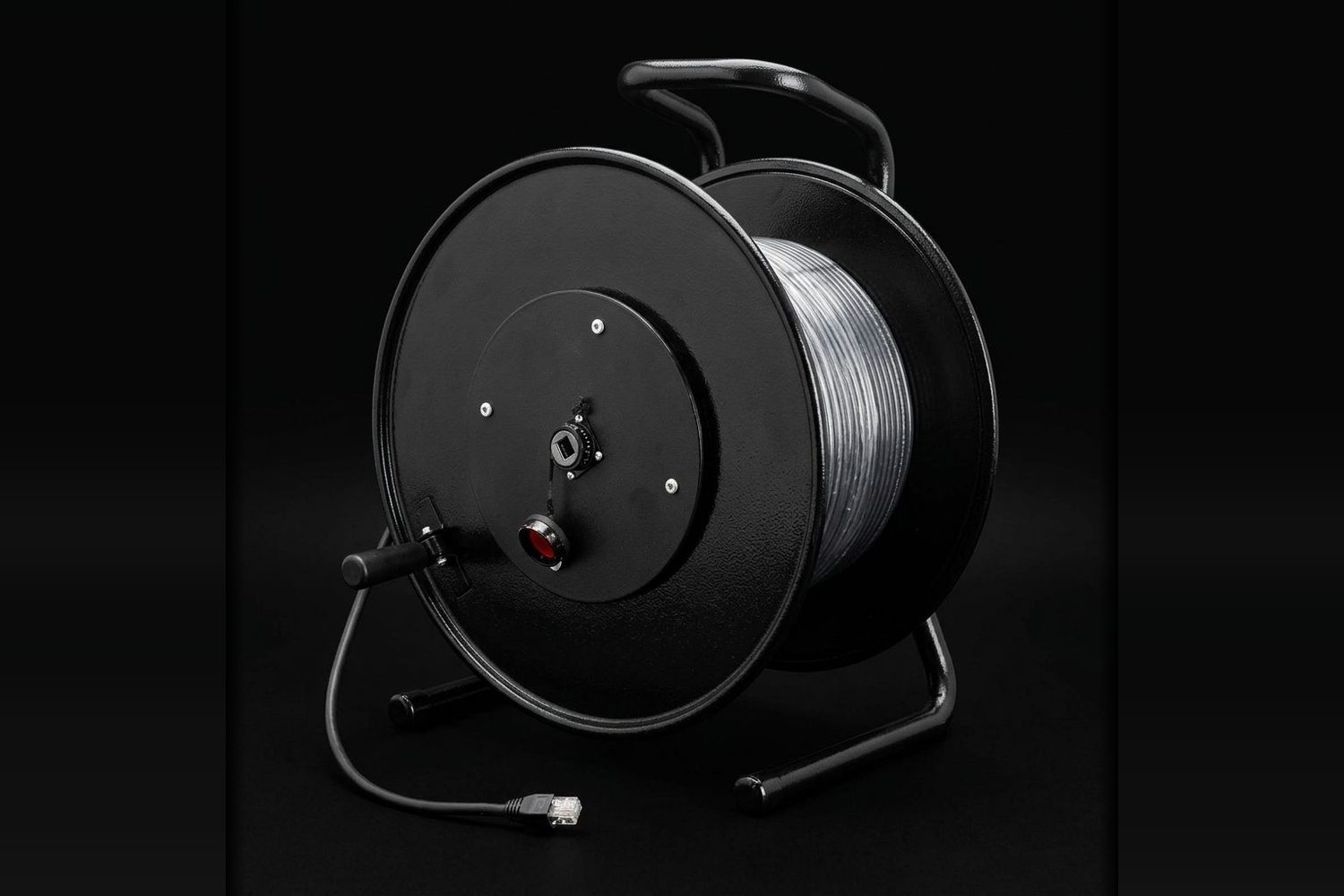

Tactical copper patch cables
Heavy duty Ethernet leads on a tough flexible jacket, built to be deployed and recovered repeatedly.
Rugged jacketIP68 connector optionsReusable

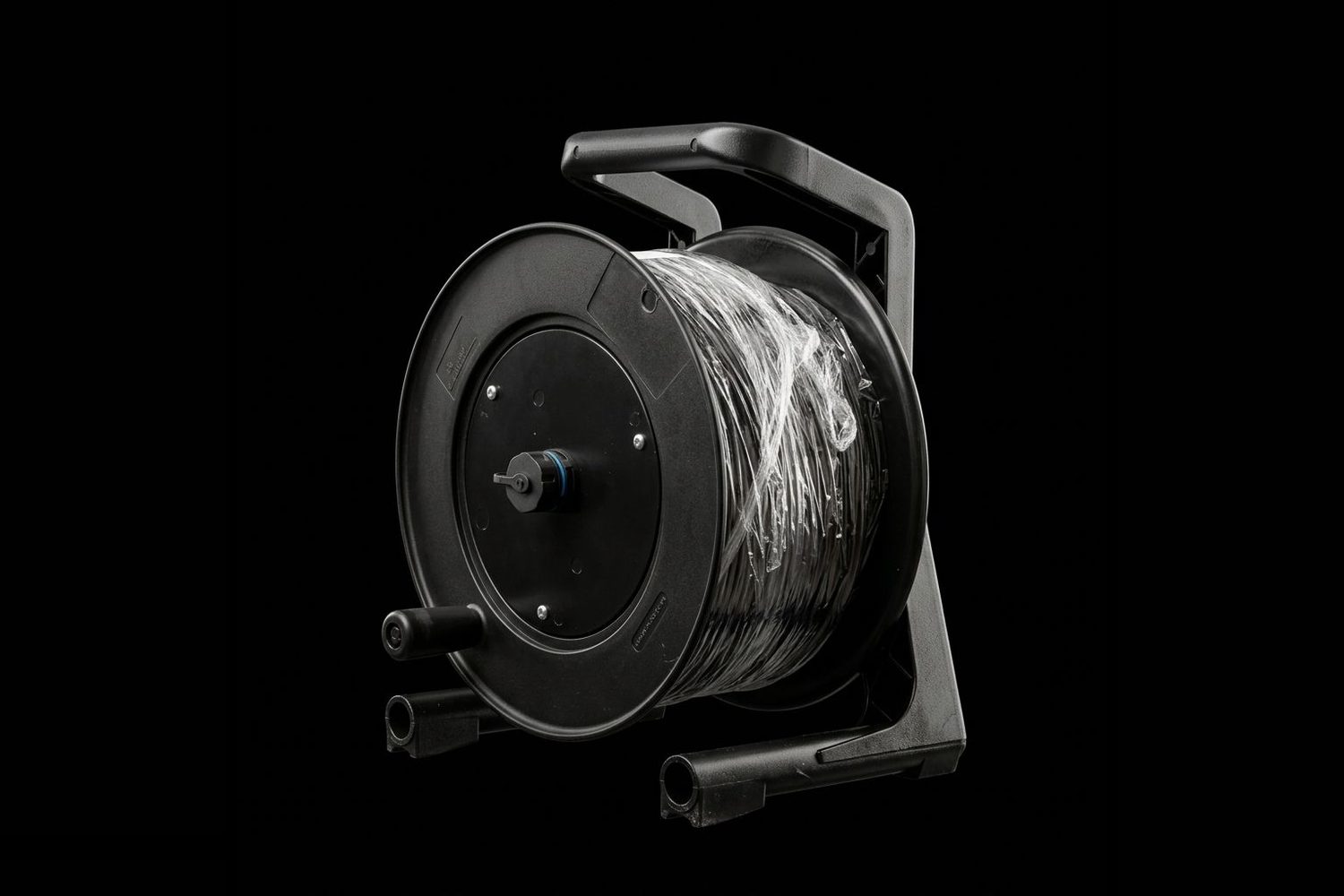

Deployable copper cable assemblies
Deployable RJ45 copper assemblies on reels, Cat5e or Cat6a, with IP67 or IP68 rated connectors for field use.
Cat5e or Cat6aIP67 and IP68Schill reels

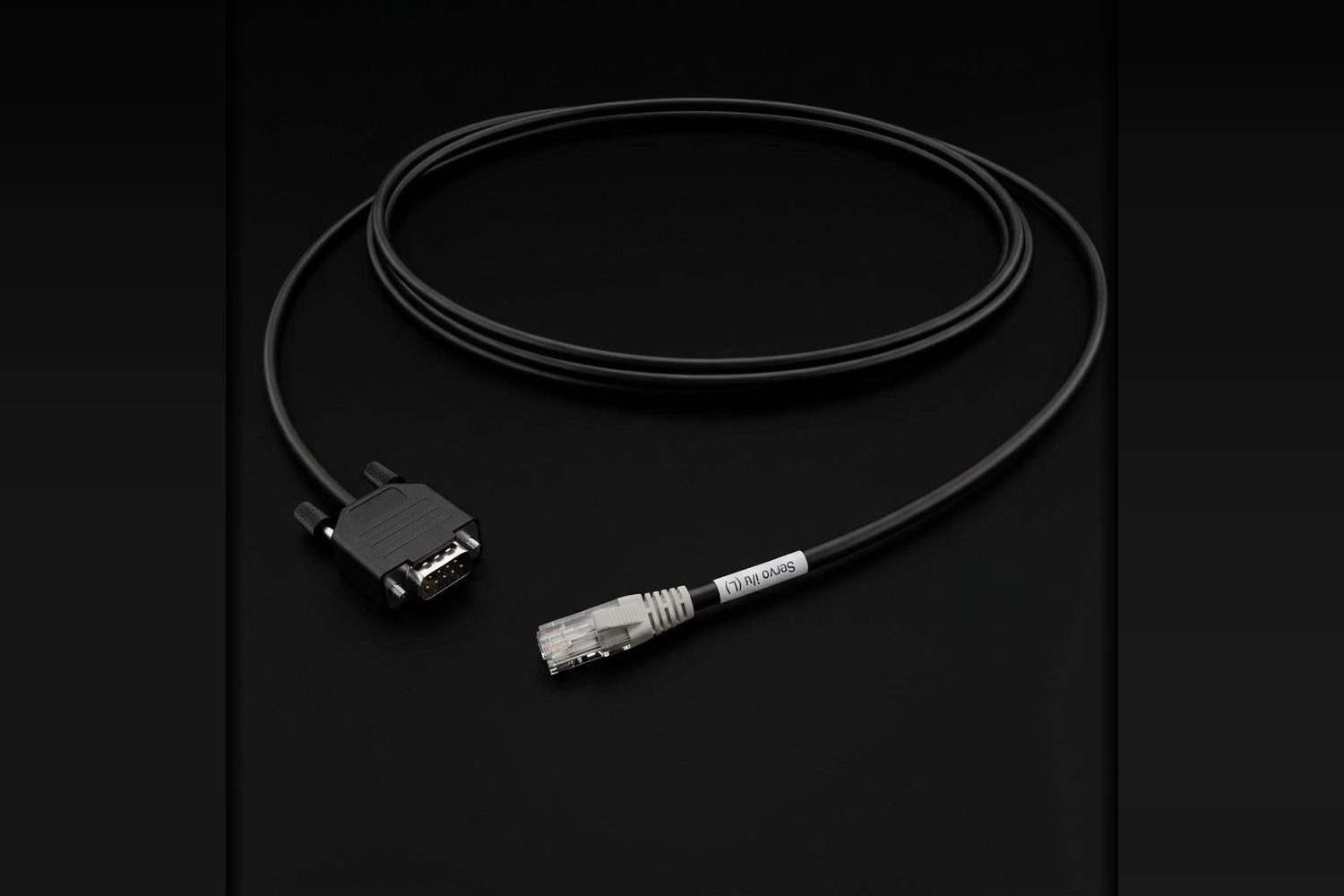

Special assemblies
Copper assemblies with special connectors, from industrial RJ45 to RJ11, RJ12 and handset plugs, Ensam 315 and Bulgin IP68 connectors, built to your drawing.
Industrial RJ45RJ11, RJ12, RJ22Ensam 315, Bulgin IP68

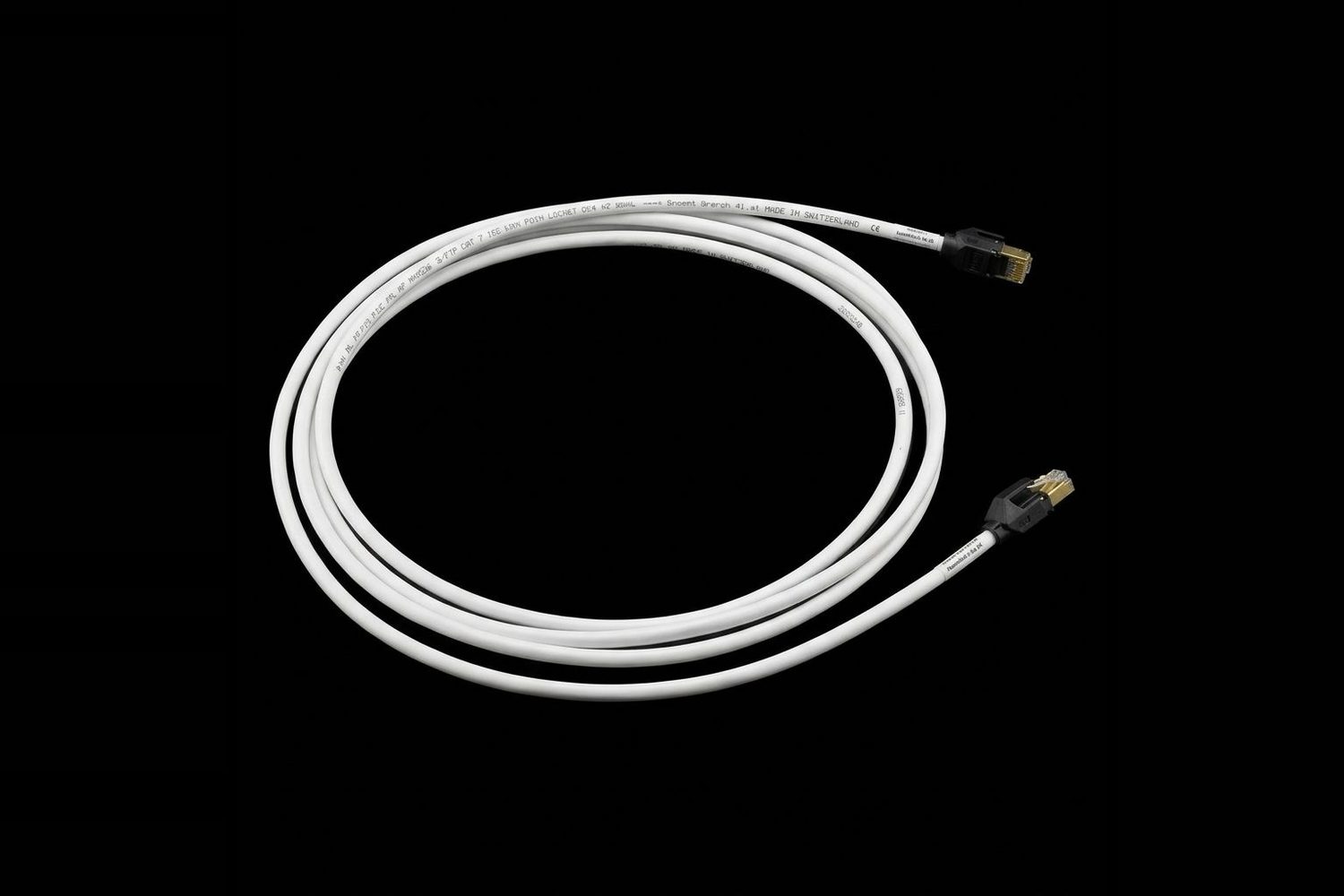

Hirose cable assemblies
Cable assemblies built with Hirose connectors to your drawing or sample, in the lengths and quantities your application needs.
Hirose connectorsBuilt to drawingIndividually tested

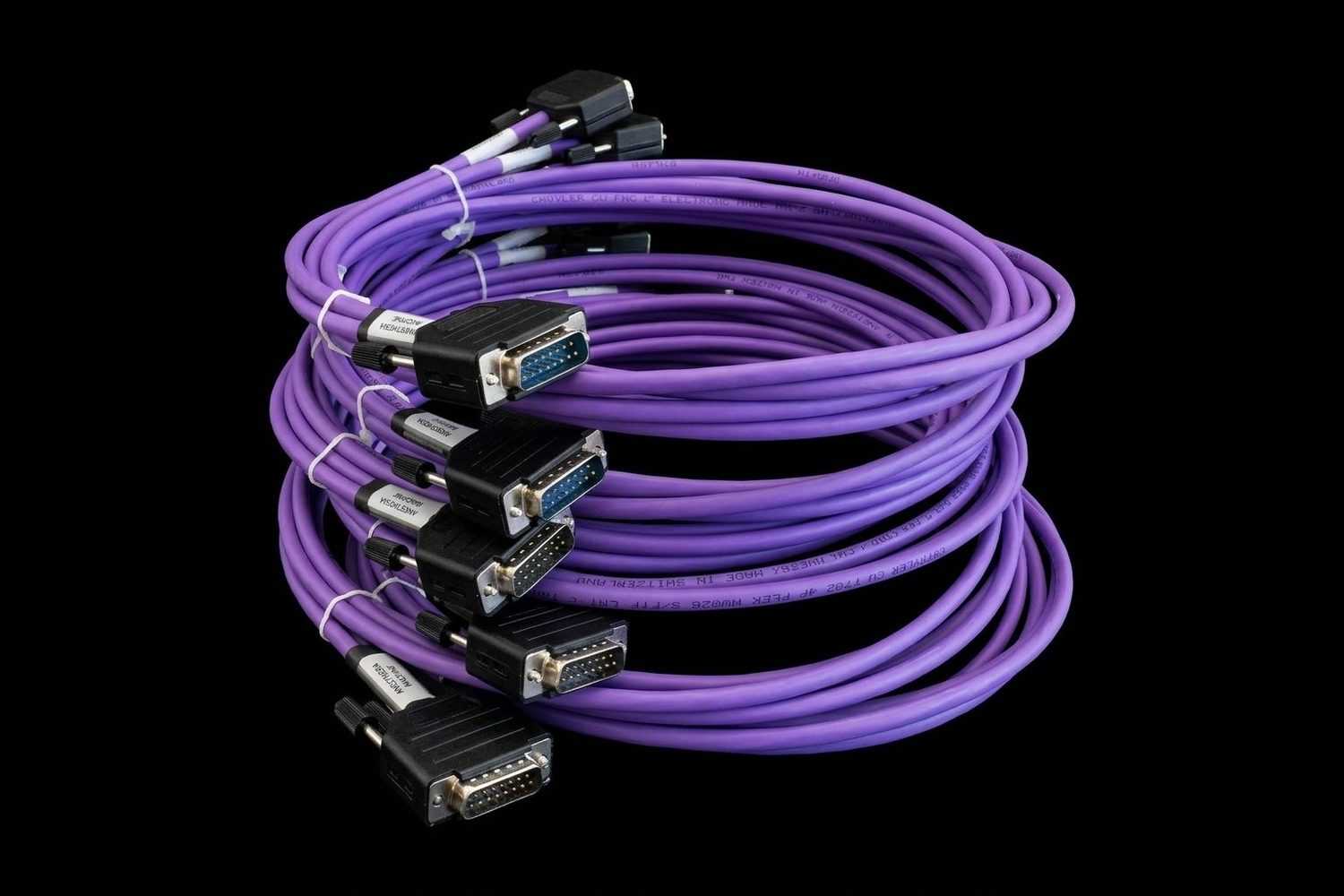

D-sub connectors and assemblies
D-sub and data connector assemblies from our solder workshop, shielded or unshielded, built to your pin-out and length.
D9, D15, D25HD15 and HD68Hydra cables
Coaxial assemblies
Coaxial leads terminated to your length and connector specification for broadcast, RF, antenna and instrumentation use.
BNC, SMA, N, F, TNCRG and LMR cableMade to length

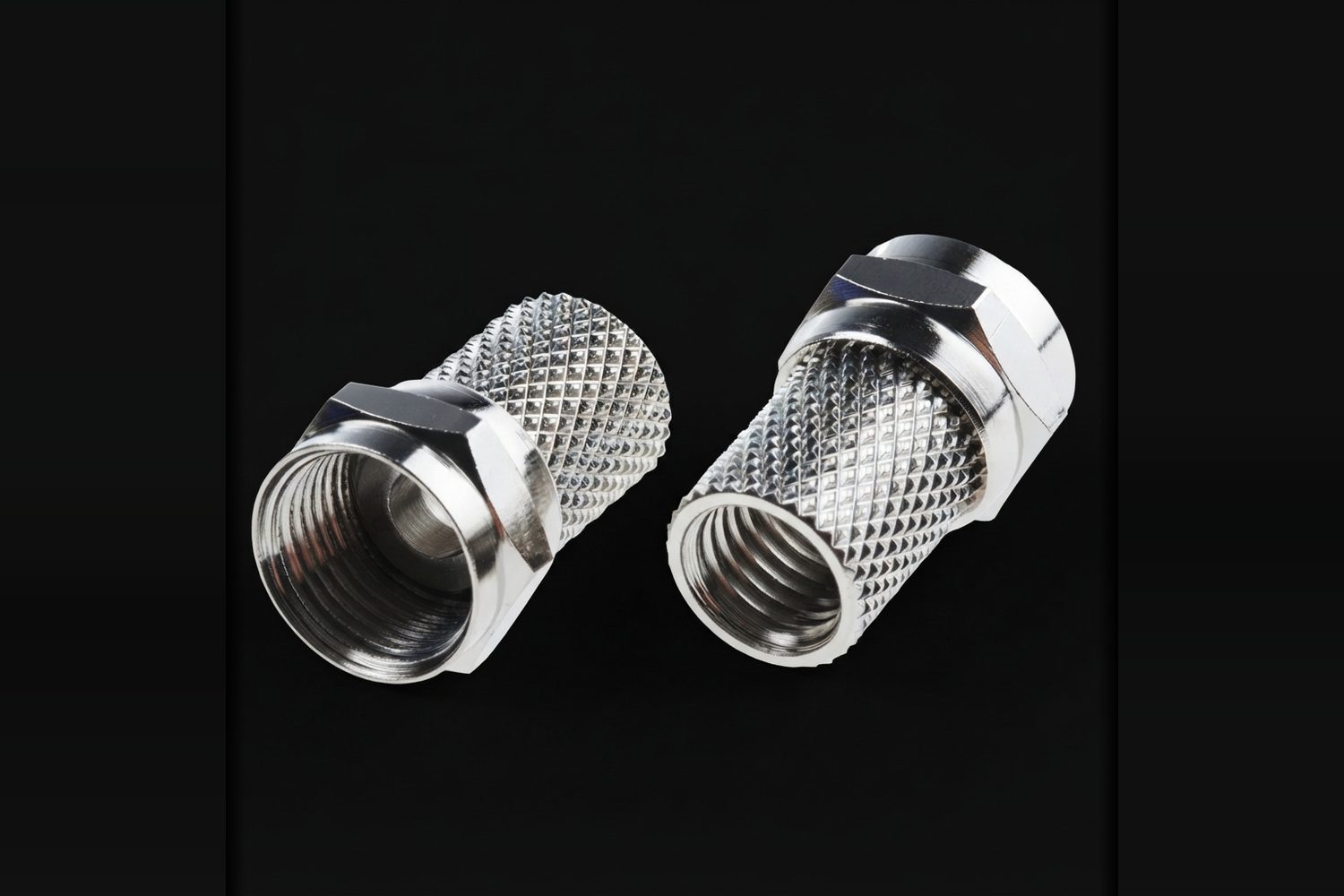

Coaxial connectors
50 Ω and 75 Ω RF connectors for cable, panel and PCB mounting, from compact types to SMA, BNC and N-type.
50 Ω and 75 ΩCable, panel and PCBSMA, BNC, N-type
IEC power cable assemblies
IEC-standard power cables assembled and PAT tested in-house, in the lengths and quantities your build requires.
IEC standardAll PAT testedMade in Britain
Nothing matches those filters in our standard range, but we build bespoke. Send us your requirement and we can probably make it.
Customisation
Built to your specification
Every product in the catalogue is a starting point. These are the options you can specify on any order, from a single assembly upwards.
Lengths
Custom overall, breakout and leg lengths. No rounding up to the nearest stock size.
Connectors
LC, SC, ST, FC, LC Uniboot, IP68 LC and SC, RJ45 (standard, ruggedised, IP-rated), BNC, SMA, N, F, TNC, IEC, Ensam 315, Bulgin, RJ11, RJ12, RJ22, D-sub and Hirose.
Fibre and cable
Singlemode OS2, OM1, OM3, OM4. Tight buffered, loose tube, CSTA and SWA armoured. Cat5e to Cat7, shielded or unshielded, solid or stranded.
Polish
UPC and APC connector solutions.
Colours
Custom cable jacket colours, connector boot colours and boot types.
Labelling
Assemblies labelled to your scheme, ready to install from the box.
Protection and packaging
Protective pulling tube, padded socks, wooden or metal drums, and non-metallic deploy reels in a range of sizes.
Testing and documentation
Every assembly individually tested. Fibre results supplied, Fluke results for copper, PAT testing for power.
Build to drawing
Send a drawing, a sketch or a sample and we will quote against it.
